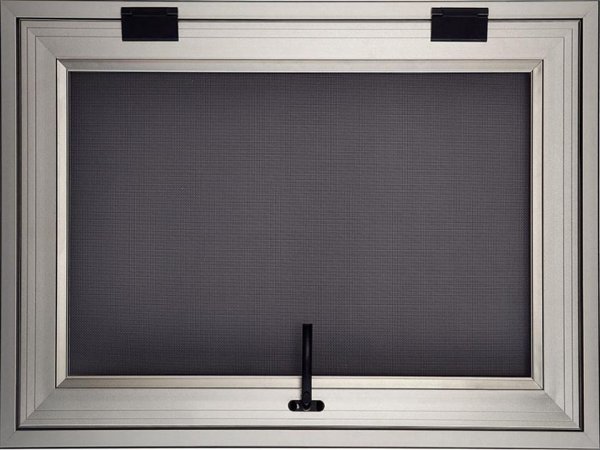

201 Diamond Network

1、 Basic Attributes and Craftsmanship

201 Diamond Mesh is a high-strength mesh product made from 201 stainless steel wire and processed by a heavy-duty weaving machine using plain weave technology. 201 stainless steel belongs to austenitic stainless steel, containing a certain amount of chromium and nickel elements, and has basic corrosion resistance (based on actual reports). During the weaving process, the intersection points of the warp and weft steel wires are tightly combined to form a solid mesh structure, with a flat mesh surface and uniform tension. Some products undergo surface treatments such as spraying or electrolytic polishing to further enhance the surface condition and protective performance.

2、 Product Features

High strength: 201 stainless steel wire itself has a certain hardness and toughness. After careful weaving, the overall impact resistance and tensile resistance of the mesh body are good. It can withstand large external impacts and is not easily damaged, making it suitable for use as a protective mesh product.

Diverse protective performance: The mesh size is usually small, ranging from 0.8mm to 1.2mm, which not only effectively blocks small flying insects such as mosquitoes and flies from entering, but also plays a role in anti-theft and anti fall to a certain extent, balancing insect and safety protection functions.

Basic corrosion resistance (based on actual reports): 201 stainless steel material can resist daily corrosion in dry indoor environments or ordinary outdoor environments, suitable for use in areas with relatively dry climates and low corrosion levels, meeting basic usage needs.

Coordination of Light Transmission and Ventilation: The mesh is woven evenly, which not only protects the strength but also does not excessively affect the transmission of light and air circulation. When installed on doors and windows, it can maintain indoor lighting and ventilation effects.

Easy installation and maintenance: It can be cut and fixed according to the size of doors and windows. The installation method is similar to that of ordinary protective nets, and the operation is relatively simple; The surface is not easy to accumulate dust, and daily cleaning can be done by wiping with a cloth or rinsing with water, with lower maintenance costs.

3、 Common specifications

Wire diameter specification: The wire diameter is usually between 0.5mm-0.8mm. Thicker wire diameters can provide higher strength and are suitable for scenarios that require high protection performance, such as door and window protection for low rise residential buildings and shops.

Mesh size: Common mesh sizes are 1mm × 1mm and 0.8mm × 0.8mm, which can effectively prevent insects and protect a certain degree of visual transparency, avoiding the impact of overly dense mesh on observing the outside world.

Size specifications: The width of the mesh is generally 0.6m-2.4m, and the length is 1m-30m. It can be customized according to the actual size of doors and windows, or processed into shapes that are suitable for different types of doors and windows, such as sliding windows, casement windows, etc.

Surface treatment: Some products will undergo spray coating treatment, and the colors can be selected from white, gray, black, etc., which can coordinate with the decoration style of doors and windows; There are also untreated natural products that present a metallic texture of stainless steel.

4、 Applicable scenarios

Residential door and window protection: Suitable for installation on doors and windows in balconies, bedrooms, living rooms, and other areas of residential buildings, especially for low rise residents. It can prevent mosquitoes from entering and enhance the safety protection of doors and windows, reducing the risk of accidental falls or external intrusion.

Shop and office space: Installed in the shop windows and doors and windows of the office area, it can protect ventilation and lighting while playing a certain anti-theft role, ensuring the safety of the store or indoor property, and avoiding mosquito and insect interference.

Used in dry areas: In areas with dry climate and low salt content in the air, 201 diamond mesh can maintain good performance stability and is suitable for long-term protective mesh use, such as building door and window protection in some northern cities.

Temporary or transitional protection: For scenarios that require short-term protection or have limited budget, 201 Diamond Net can be an affordable choice to meet basic pest and safety protection needs.

5、 Precautions for use

The corrosion resistance of 201 stainless steel (based on actual reports) is slightly weaker than that of 304, 316 and other models. When used in humid, coastal or highly polluted areas, regular inspections should be strengthened. If rust is found on the surface, it should be cleaned and rust prevention treatment should be carried out in a timely manner to extend the service life.

During installation, it is necessary to confirm that the mesh is firmly fixed to the door and window frames, using one-to-one fasteners to avoid loosening of the mesh due to improper installation, which may affect the protective effect.

Avoid hitting or scratching the mesh surface with hard or sharp objects to prevent wire breakage or mesh deformation. If there is local damage, it should be repaired or replaced in a timely manner to protect the overall protective performance.

When selecting, it is necessary to consider the climate characteristics of the usage environment, protection requirements, and budget, and clarify the scope of application of 201 diamond mesh to confirm that it can meet the actual usage requirements.
